TECNAM P2008JC CS/VLA VFR NIGHT

YEAR OF PRODUCTION: 2014

SERIAL NUMBER: 1028

TTSN: 6502

ENGINE TSO: 0

ENGINE AFTER GO

STANDARD GARMIN AVIONICS PACKAGE

• G3X DUAL SCREEN
• GMA 340 Audio Panel
• GNC 255A COM/NAV
• GTX 328 TDX
• ELT 406 Mhz
• Speakers
• Microphone
• Stick Push-To-Talk Switch-Pilot/Copilot

INSTRUMENTS / INDICATORS / WARNINGS

• AIRSPEED and ALTIMETER Back up TSO
• CHT
• FUEL INDICATOR RH and LH
• BANK Indicator
• TRIM Indicator
• CHRONOMETER
• VFR NIGHT PACKAGE

FUEL SYSTEM

• TWO INTEGRAL FUEL TANKS WITH 120 LITRES TOTAL CAPACITY
• ENGINE DRIVEN FUEL PUMP
• FUEL QUICK DRAIN
• ELECTRICAL FUEL PUMP

POWERPLANT AND PROPELLER

• ENGINES - 1 ROTAX 912S2 100 HP, 4 Cylinders
  • liquid/air cooled, integrated reduction gear
• DUAL IGNITION SYSTEM
• THROTTLE CONTROL
• THERMOSTAT VALVE WATER AND OIL
• AUXILIARY ALTERNATOR

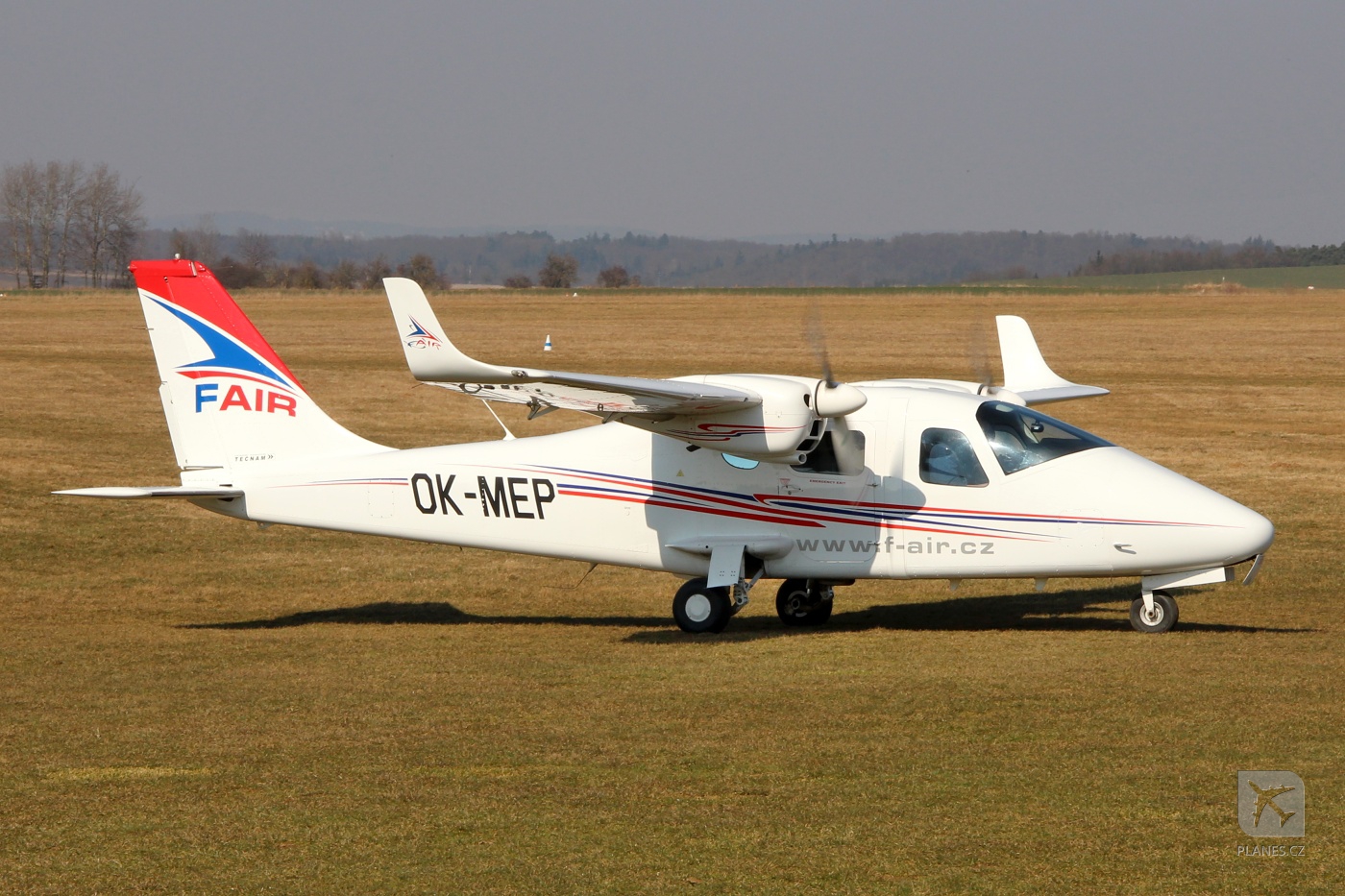

TECNAM P2006T G950 OK-MEP

PRODUCTION YEAR: 2010

TOTAL TIME: 5890 HOURS

ENGINES: NEW - ONLY 106 HOURS

PROPELLERS OVERHAULED 106 HOURS

GOVERNORS: OVERHAULED 106 HOURS

STANDARD GARMIN AVIONICS PACKAGE

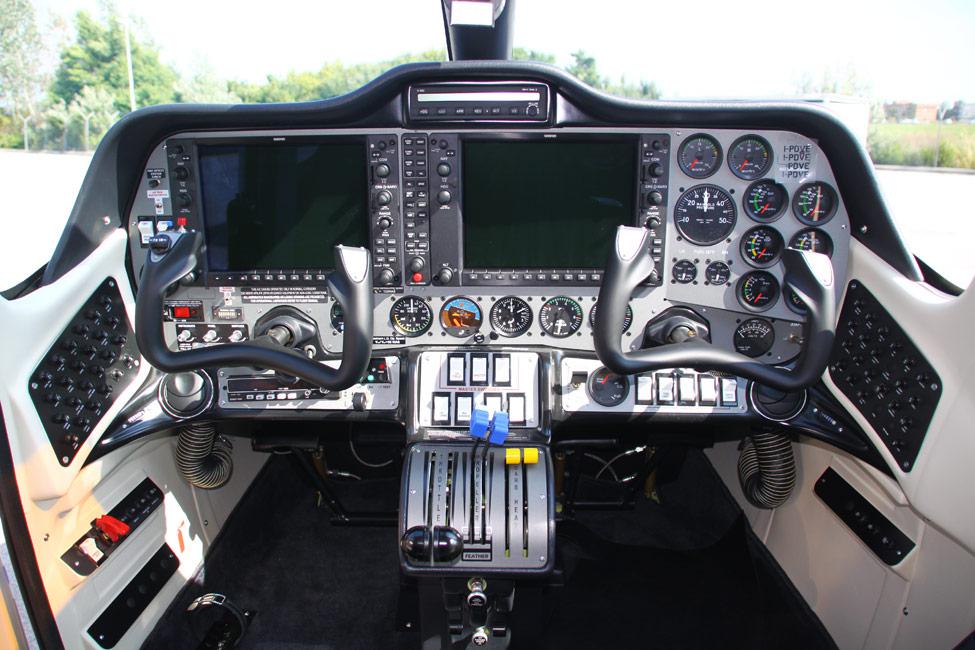

• G950 INTEGRATED FLIGHT DECK SYSTEM
• BACKUP AIRSPEED, ATTITUDE AND ALTIMETER
• DME – KING KN63 – INTEGRATED CONTROL – DISPLAYED ON PFD
• PITOT SYSTEM HEATED
• S-TEC AUTOPILOT SYSTEM 55X DUAL AXIS



INSTRUMENTS / INDICATORS / WARNINGS

• FLIGHT INSTRUMENTS AND INDICATORS
• MAGNETIC COMPASS
• AIRSPEED INDICATOR, Kts, two
• ALTIMETER DUAL MODE (IN/Mb), two
• VERTICAL SPEED INDICATOR
• DIRECTIONAL ELECTRIC
• ATTITUDE HORIZON ELECTRIC, two
• TURN AND BANK INDICATOR
• OUTSIDE AIR TEMPERATURE INDICATOR
• PITOT SYSTEM HEATED
• STATIC SYSTEM
• ALTERNATE STATIC SOURCE
• STALL WARNING AUDIBLE
• LANDING GEAR POSITION LIGHT, THREE
• LANDING GEAR-in-TRANSIT/NOT LOCKED LIGHT
• STABILATOR TRIM POSITION INDICATOR
• RUDDER TRIM POSITION INDICATOR

FUEL SYSTEM

• TWO INTEGRAL FUEL TANKS WITH 200 LITRES TOTAL CAPACITY
• ENGINE DRIVEN FUEL PUMPS, two
• AUXILIARY FUEL PUMPS, ELECTRIC, two
• FUEL TANK QUICK DRAIN, two
• SHUT OFF VALVES WITH CROSSFEED, two

POWERPLANT AND PROPELLER

• ENGINES - 2 ROTAX 912 S3 100 HP
  • 4 cylinders
  • liquid/air cooled
  • integrated reduction gear
• DUAL IGNITION SYSTEM
• PROPELLERS - 2 MT, 2 Blade, Constant Speed
